Understanding App Services, App Service Plan and App Services Environment

App Services

The App Services in Azure is a PAAS offering that integrates Microsoft Azure Websites, Mobile Services, and other services into a single service. It is a fully managed platform allowing you to run ad scale your applications effortlessly. You can quickly build powerful web, mobile and API apps using the different programming language of your choice. It offers auto-scaling and high availability and enables automated deployments from multiple sources.

AppServices1

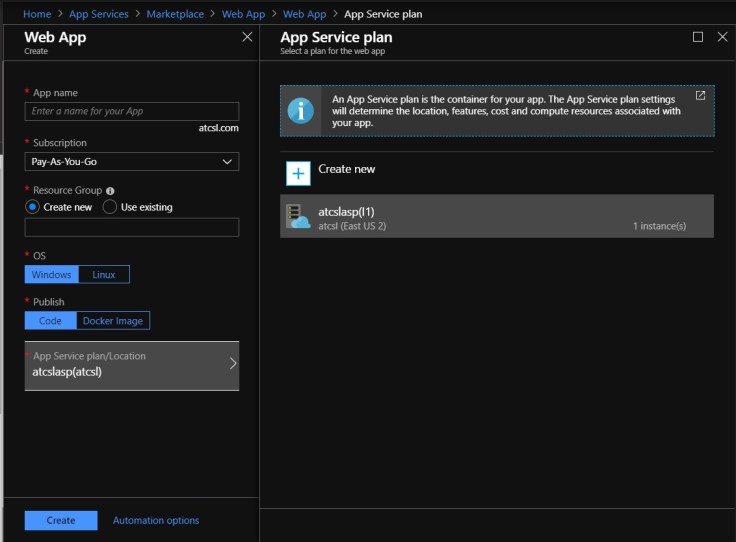

AppServices2

App Service Plan

App Service Plan represents the collection of physical resources for the App Service. An App Service Plan can have multiple web apps. In other words, we can have multiple web apps in an app service plan. We can consider an App Service Plan as a single compute resource, i.e., a Virtual Machine. Therefore, for the billing purposes, if we create more than one web apps in a single App Service Plan, we will be charged only once. On the other hand, there can be an adverse effect on the performance of an application if the applications are using the same App Service Plan because they will be competing for the same resources.

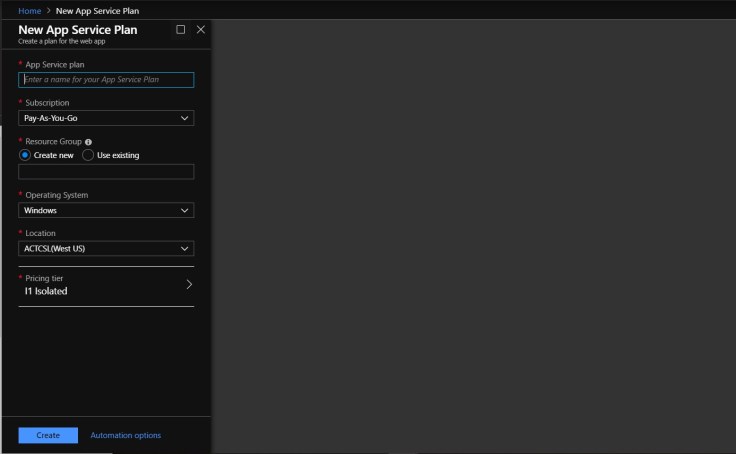

AppServicePlan

Below is a high-level comparison of the features as per the pricing tier for the App Service Plan.

SKUs FREE SHARED BASIC STANDARD PREMIUM ISOLATED*
Limits
Apps 10 100 Unlimited Unlimited Unlimited Unlimited
Disk space 1 GB 1 GB 10 GB 50 GB 250 GB
Max instances Up to 3 Up to 10 Up to 20
SLA 99.95% 99.95% 99.95%
App Deployment
Continuous Deployment Available Available Available Available Available  Available
Deployment Slots Available Available Available
Development Tools
Clone App Available Available
Site Extensions Available Available Available Available Available  Available
Testing in Production Available Available Available
Networking
Hybrid Connections Available Available Available Available Available Available
VNET Integration Available Available Available
Scale
Auto-scale Available Available Available
Integrated Load Balancer Available Available Available Available Available
Traffic Manager Available Available Available
Backup/Restore Available Available Available
Custom Domains Available Available Available Available Available
FTP/FTPS Available Available Available Available Available Available
SSL (IP/SNI) Available Available Available Available

 App Services Environment (ASEv1/ASEv2)

The App Service Environment, on the other hand, is a deployment of the Azure App Service into your own Azure Virtual Network as per the new capabilities of ASE and runs on a separate SKU, which is called Isolated SKU. This is the second generation of ASE generally referred to as ASEv2, whereas, the previous version was referred to as ASEv1. This enables your apps to have direct access to corporate resources over Site-to-site or ExpressRoute connections.

ASEs are isolated from running only a single customer’s applications and are always deployed into a virtual network. Customers have fine-grained control over inbound and outbound application network traffic. Applications can establish high-speed secure connections over VPNs to on-premises corporate resources.

Customers can create multiple ASEs within a single Azure region or across multiple Azure regions. This flexibility makes ASEs ideal for horizontally scaling stateless application tiers in support of high RPS workloads. App Service environments (ASEs) are appropriate for application workloads that require:

  • Very high scale.
  • Isolation and secure network access.
  • High memory utilization.
Comparison
ASE v1 ASE v2
Resources are managed manually. This includes the Front Ends, Workers and IP based SSL No manual intervention is required to scale out front ends and workers. All infrastructure is automatically added as customers scale out their App Service plans
Pay for each allocated vCPU, which includes both front ends and workers that are not hosting and workloads There is a flat monthly rate for an ASE v2. There is an additional cost per App Services Plan vCPU
App Service Environment can be configured with up to fifty (50) compute resources for exclusive use by a single application ASE v2 can host 100 App Service Plan instances. The range can span 100 instances in a single App Service plan to 100 single-instance App Service plans, and everything in between
ASE v1 can be deployed on both classic virtual network as well as Resource Manager virtual network ASE v2 can be deployed only on the Resource Manager Virtual Network

Refer to the below URL for the ASE Pricing details along with the App Services Plan.

https://azure.microsoft.com/en-us/pricing/details/app-service/windows/

Below is the pricing tier availability for the App Service Plan for ASE v2

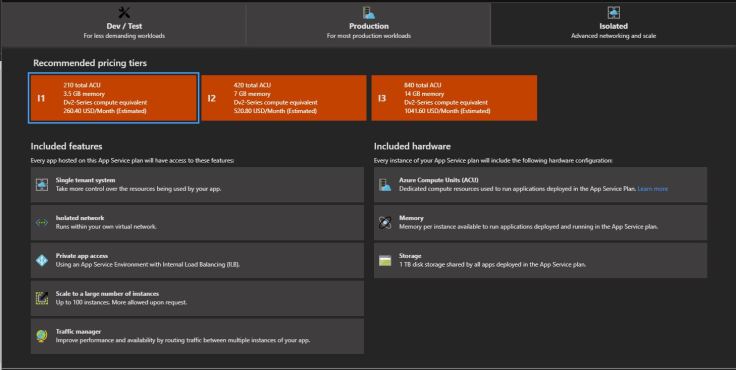

pricing tier

An ASE can be either internet-facing with a public IP address or internal-facing with only an Azure internal load balancer (ILB) address.

If you deploy the ASE in a virtual network that has a VPN connection to the on-premises network, the apps in the ASE can access the on-premises resources, ad this can be done using either Site-to-site VPN or an Express Route. The best example would be in case you wish to leverage the on-premises databases with the application hosted on ASE.

Summary

An App Service Environment (v2) is a fully isolated and dedicated environment for running Azure App Service apps at high scale securely, which includes Web Apps, Mobile Apps, and API’s. It is the deployment of the Azure App Service into a subnet of your virtual network, and also allows your applications to interact with your corporate systems giving you more flexibility.
